Rain Gardens

Overview

Rain Gardens, also known as bioretention cells​, are a beautiful way to manage stormwater on site. A rain garden is a constructed depression in the soil that ranges from a few inches to several feet in depth, depending on the amount of area that drains into the rain garden. The depression is filled with an engineered soil mixture that allows water to percolate quickly. The garden is then planted with shrubs and flowers that "drink" up the stormwater.

See Also

  • Opequon Creek Project Team

    The Opequon Creek Project Team (OCPT) was formed in April 2005 to plan and implement nonpoint source pollution reduction projects in the watershed.

  • Rain Garden Network

    A rain garden is no more than a shallow depression, planted with deep-rooted native plants and positioned near a runoff source.


Benefits of Bioretention and Infiltration

Bioretention and infiltration practices come in a variety of types and scales, including rain gardens, bioswales and wetlands. Rain gardens are dug at the bottom of a slope in order to collect water from a roof downspout or adjacent impervious surface. They perform best if planted with long-rooted plants like native grasses. Bioswales are typically installed within or next to paved areas like parking lots or along roads and sidewalks. They allow water to pool for a period of time and then drain, and are designed to allow for overflow into the sewer system. Bioswales effectively trap silt and other pollutants that are normally carried in the runoff from impermeable surfaces. While the multitude of benefits provided by wetlands has been well documented elsewhere, this guide only addresses smaller scale practices.

Reduces Stormwater Runoff

  • These practices store and infiltrate stormwater, which mitigates flood impacts and prevents the stormwater from polluting local waterways.

Increases Available Water Supply

  • By reducing the amount of potable water used for outdoor irrigation, these practices may also increase available water supplies.

Increases Groundwater Recharge

  • Bioretention and infiltration practices have the potential to increase groundwater recharge by directing rainwater into the ground instead of pipes.

Improves Air Quality

  • Like other vegetated green infrastructure features, infiltration practices can improve air quality through uptake of criteria air pollutants and the deposition of particulate matter.
  • By minimizing the amount of water entering treatment facilities, these practices also reduce energy use which, in turn, reduces air pollution by lowering the amount of greenhouses gases emitted.

Reduces Urban Heat Island

  • Through evaporative cooling and reduction of surface albedo, these practices work to mitigate the urban heat island effect, reducing energy use

Reduces Atmospheric CO2

  • Bioretention and infiltration practices reduce carbon dioxide emissions through direct carbon sequestration.
  • By reducing the amount of energy needed to treat runoff, as well as reductions in energy use for cooling purposes, bioretention and infiltration practices reduce atmospheric CO2.

Improves Community Livability

  • When well-maintained, bioretention and infiltration practices improve local aesthetics and enhance recreational opportunities within communities.
  • There is also the potential for these practices to help reduce noise transmission through sound absorption and to improve social networks in neighborhoods.

Improves Habitat

  • Bio-retention and infiltration practices provide habitat and increase biodiversity.

Cultivates Public Education Opportunities

  • Managing future economic and environmental constraints will require full community participation and partnership. Green infrastructure provides an opportunity to develop community awareness and understanding around the importance of sustainable water resource management.
  • Rain gardens and bioswales provide an opportunity for residents to contribute to the benefits of neighborhood place-making via green infrastructure.

Berkeley County Judicial Complex Rain Garden

In 2006, the WVDEP partnered with several organizations to build a rain garden at the Berkeley County Judicial Complex in Martinsburg, WV. The partners included the City of Martinsburg, Berkeley County Commission, the Berkeley-Jefferson Master Gardeners, Opequon Creek Project Team, and others. Without the commitment and involvement of the partners this project would not have succeeded.

The space for the rain garden was chosen because runoff from the parking lot drained to this corner. And, there was an available storm drain inlet that would receive excessive amounts of water. Five parking spaces were removed to accomodate the rain garden. During construction of the rain garden the Berkeley County Judicial Center was undergoing a major renovation.

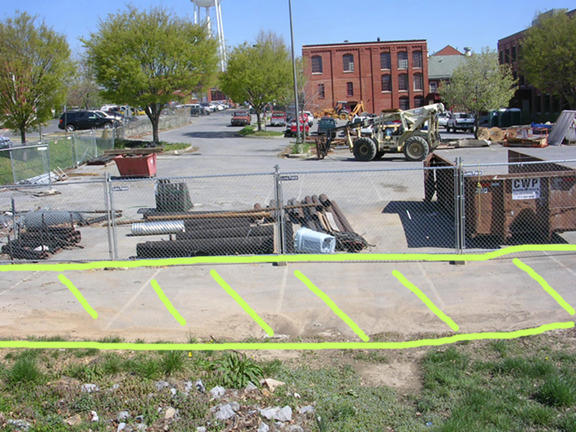

Edge of parking lot that will be converted into a rain garden.
The green hash marks in the photo indicate the area where the rain garden will be constructed.
The Berkeley-Jefferson Master Gardeners and members of the Opequon Creek Project Team pitched in and planted the flowers and shrubs in the rain garden. This photo was taken shortly after the plants were placed in the ground.
The Berkeley-Jefferson Master Gardeners and members of the Opequon Creek Project Team pitched in and planted the flowers and shrubs in the rain garden. This photo was taken shortly after the plants were placed in the ground. Photo by George Snider.
By May of 2008, the plants are well established and starting to fill the empty spaces.
By May of 2008, the plants are well established and starting to fill the empty spaces.
In November of 2008 the plants are showing off their fall colors.
In November of 2008 the plants are showing off their fall colors. Photo by Alana Hartman.

Baltimore Street Rain Garden

The Baltimore Street Rain Garden is a project constructed by collaboration between the Opequon Creek Project Team and the City of Martinsburg. In the spring of 2008 the Team installed this rain garden with AGO funding received from WVDEP's Nonpoint Source Program. This project included the production of a video which describes how homeowners can convert such a large garden into a scaled down version for home use and enjoyment. The Master Gardeners, Hedgesville Girl Scout Troop 442 and Faith Christian Academy students have all donated their expertise and labor to this project. The garden is located at the intersection of Baltimore and Randolph Streets in Martinsburg, WV.

Learn More

  • The Opequon Creek Project Team

    The Opequon Creek Project Team (OCPT) was formed in April 2005 to plan and implement nonpoint source pollution reduction projects in the watershed. Several local, state and federal government agencies are represented at OCPT’s regular meetings, and clean-up and tree planting events have attracted many watershed residents and their families. Opequon Creek Project team quickly has become a dynamic force of progress in the community’s effort to protect and enhance its natural resources.

  • Nonpoint Source Additional Grant Opportunities (AGO) Funding

    AGO's can focus on nonpoint issues in water bodies that may not be impaired or provide monies for special projects not typically funded through watershed project grants.

  • Nonpoint Source Program

    The Nonpoint Source (NPS) Program is part of WVDEP's Watershed Improvement Branch (WIB). The NPS Program coordinates multi-agency and non-government organizations efforts to address nonpoint pollution.

  • Watershed Improvement Branch

    The mission of WVDEP’s Watershed Improvement Branch (WIB) is to inspire and empower people to value and work for clean water. WIB administers programs that educate, provide assistance, and plan and implement water quality protection, improvement and restoration projects.

Opequon Creek Project Team members break ground on the Baltimore Street rain garden in Martinsburg, WV.
Opequon Creek Project Team members break ground on the Baltimore Street rain garden in Martinsburg, WV.
